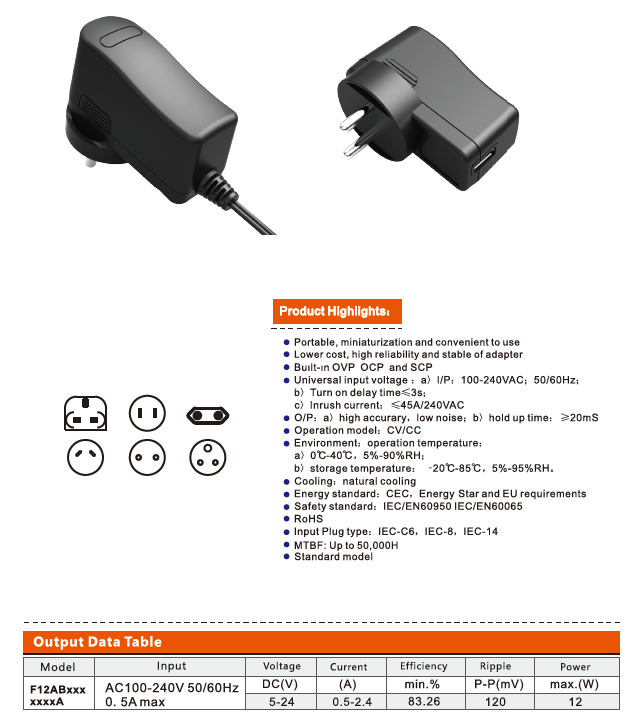

Product Highlights
Portable, miniaturization and convenient to use
Lower cost, high reliability and stable of adapter
Built-in OVP OCP and SCP
Universal input voltage： a) I/P: 100-240VAC: 50/60Hz；
b) Turn on delay times≤3s;
c) Inrush current: ≤45A/240VAC
O/P: a> high accurary, low noise; b) hold up time: ≥20mS
Operation model: CV/CC
Environment: operation temperature:
a) 0℃-40℃, 5%-90%RH;
b) storage temperature: -20℃-85℃, 5%-95%RH.
Cooling: natural cooling
Energy standard: CEC, Energy Star and EU reguirements
Safety standard: IEC/EN60950 IEC/EN60065
RoHS
Input Plug type: IEC-C6. IEC-8. IEC-14
MTBF: Up to 50.000H
Standard model

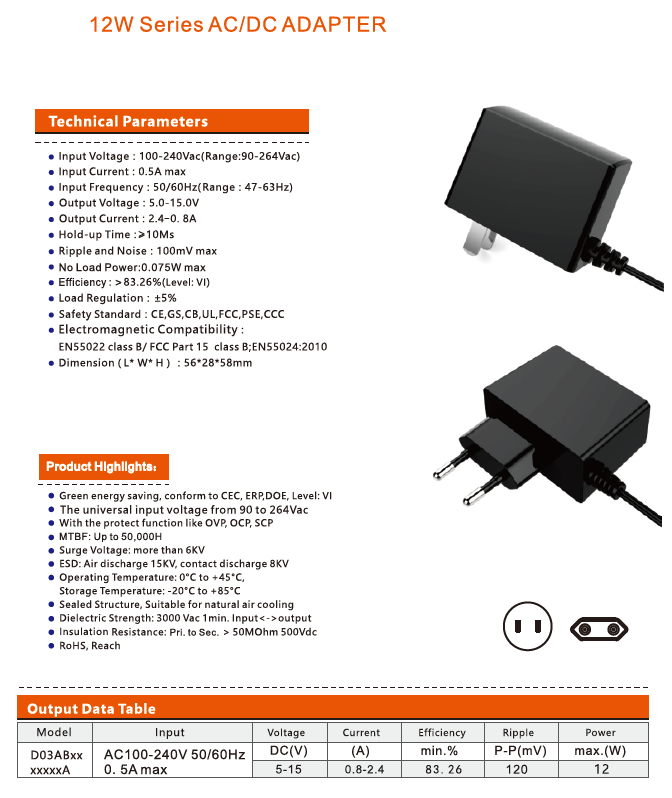

Technical Parameters
Input Voltage: 100-240Vac(Range:90-264Vac)
Input Current: 0.5A max
Input Frequency: 50/60Hz(Range : 47-63Hz)
Output Voltage: 5.0-15.0V
Output Current: 2.4-0. 8A
Hold-up Time :≥10Ms
Ripple and Noise: 100mV max
No Load Power:0.075W max
Efficiency: >83.26%(Level: VI)
Load Regulation: ±5%
Safety Standard: CE,GS,CB,UL,FCC,PSE,CCC
Electromagnetic Compatibility: EN55022 class B/FCC Part 15 class B;EN55024:2010
Dimension (L*W*H):56*28*58mm
Product Highlights
Portable, miniaturization and convenient to use
Lower cost, high reliability and stable of adapter
Built-in OVP OCP and SCP
Universal input voltage： a) I/P: 100-240VAC: 50/60Hz；
b) Turn on delay times≤3s;
c) Inrush current: ≤45A/240VAC
O/P: a> high accurary, low noise; b) hold up time: ≥20mS
Operation model: CV/CC
Environment: operation temperature:
a) 0℃-40℃, 5%-90%RH;
b) storage temperature: -20℃-85℃, 5%-95%RH.
Cooling: natural cooling
Energy standard: CEC, Energy Star and EU reguirements
Safety standard: IEC/EN60950 IEC/EN60065
RoHS
Input Plug type: IEC-C6. IEC-8. IEC-14
MTBF: Up to 50.000H
Standard model
Product Highilghts:
Green energy saving, conform to CEC, ERPDOE, Level: VI
The universal input voltage from 90 to 264Vac
With the protect function like OVP, OCP, SCP
MTBF: Up to 50,00он
Surge Voltage: more than 6KV
ESD: Air discharge 15KV, contact discharge 8KV
Operating Temperature: 0°C to +45°C, Storage Temperature:-20°C to +85°C
Sealed Structure, Suitable for natural air cooling
Dielectric Strength: 3000 Vac 1min. Input<->output
Insulation Resistance: Pri.to Sec, > 50MOhm 500Vdc
RoHS, Reach
